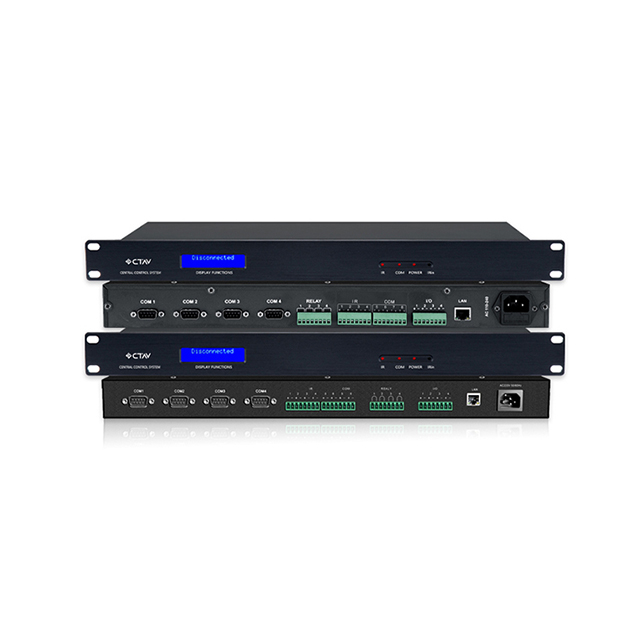

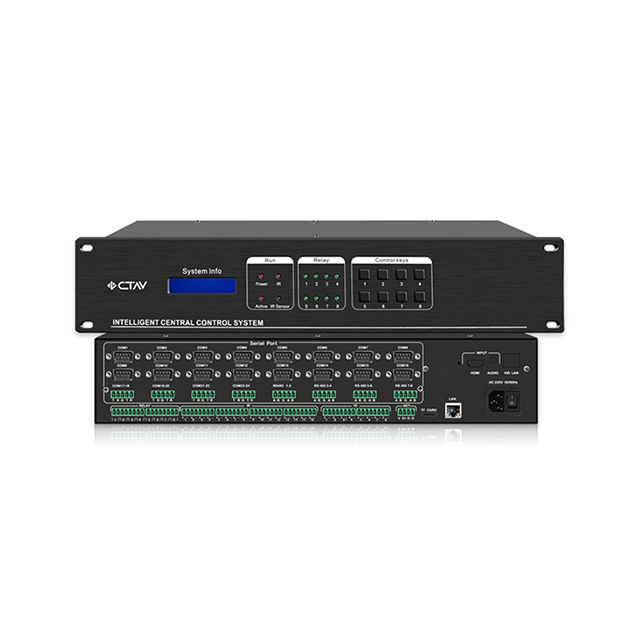

Central control host

  • CT-IV-HB-06

  • hongboyatai

Availability:

Hongbo's new generation of professional network communication-type programmable central control hosts utilize various analog and digital formats to control audio-visual and building technology, combining high performance, backward compatibility, and extensive network security features to provide a scalable platform for the future. This series is suitable for the control and automation of medium-sized rooms and multi-room application environments. The central control host enhances security functions, providing secure control and monitoring for large and medium-sized audio-visual systems, exhibition hall control systems, lighting, security, power management, and many similar professional application environments that require economical control through a limited number of physical ports. This series of products is widely used in conference rooms, media convergence centers, intelligent exhibition halls, lecture halls, command and control centers, war rooms, monitoring, multimedia remote video conference rooms, and other occasions, adapting to any complex application environment.

1. The powerful built-in programmable interface enables the central control host to control almost all external devices (including third-party devices), supporting the unique CT-NET and GS-LINK protocols as well as Ethernet (TCP/IP) protocol, with options for CTLBUS and KNX protocols.

2. Provides an open programmable control platform, user-friendly Chinese operation interface, and interactive control structure, allowing free editing of images, icons, and text.

3. Supports one-click linkage control management function, with a pure Chinese interface that is simple, clear, and easy to operate.

4. With its high-end brushed panel design, it can be paired seamlessly with various premium audio equipment.

5. Using object-oriented bus protocol control, it allows for the arbitrary expansion of control modules, such as multiple dimmers, multiple RF wireless receivers, multiple power controllers, etc., with a maximum support of 255 network devices.

6. The CT-AV-HB central control system is an intelligent device with high reliability. It incorporates fault-tolerant technology in its design and utilizes communication interface circuits with high anti-interference capabilities, ensuring the stability of the system.

7. It supports multiple control methods, including touch screen, computer, network, wall panel, and voice control. (It supports wireless touch screen control for Google Android systems. It supports wired/wireless touch computer control for Microsoft Windows CE/XP/7/10 systems. It supports wireless touch screen control for Apple iOS systems (iPad/iPhone). It supports digital RF wireless touch screen control with a communication distance of up to one kilometer. It supports wired touch screen (wall/tabletop) control. It supports automatic command execution at startup and scheduled command execution. It supports voice switch control functions in conjunction with voice intelligent terminals)


1. Equipped with 6 independent programmable RS-232 control interfaces, including 1 bidirectional RS-232/485 control interface;

2. Communication control port: Ethernet (TCP/IP) TCP SERVER/UDP mode optional;

3. Equipped with 6 independently programmable infrared (IR) emission interfaces, and comes with an infrared learner

4. Equipped with 4-channel trigger (I/O) interface;

5. Equipped with 4-channel weak current relay (RELAY) interfaces;

6. 1-channel Net network interface, supporting TCP/IP Ethernet protocol

7. Supports Windows, Android, and iOS devices simultaneously

8. Support digital RF wireless touch screen control;

9. Support wired touch screen (wall/tabletop) control;

10. Adopt an industrial-grade 32-bit ARM Cortex® processor with a main frequency of 1.6G

11. 256M DDR memory, 1G Flash storage

12. It can implement scheduled tasks, executing predetermined programs at a specific time.
