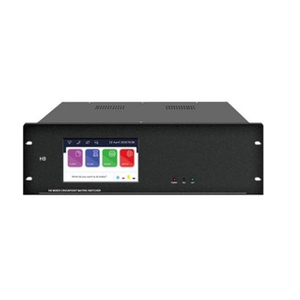

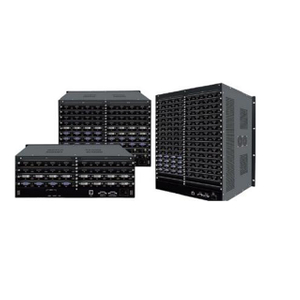

Seamless video matrix

1. The video matrix chassis supports both 2K and 4K signal board card options, allowing for unified or mixed configurations. The output refresh rates supported include 30HZ, 50HZ, and 60HZ, enhancing compatibility.

2. Both input and output support the insertion of multiple signal cards, with 4 channels per card.

3. Card-inserting structure, mixed input and output, one card with four channels, supporting DVI, VGA, AV, HDMI, SDI, HDBaseT, YPbPr, fiber, network, and other boards and cards.

4. The full-platform control software boasts strong adaptability, offering Android apps, Apple IOS apps, and computer control software. These three methods can be used simultaneously, and the interface is customizable.

5. In addition to the app, it also supports browser web page control for systems such as HarmonyOS, Linux, Windows, and Apple iOS. Users can modify the names of input and output channels on the web page for easy memory. When opening the web page, a password must be entered first, and password management and modification functions are provided.

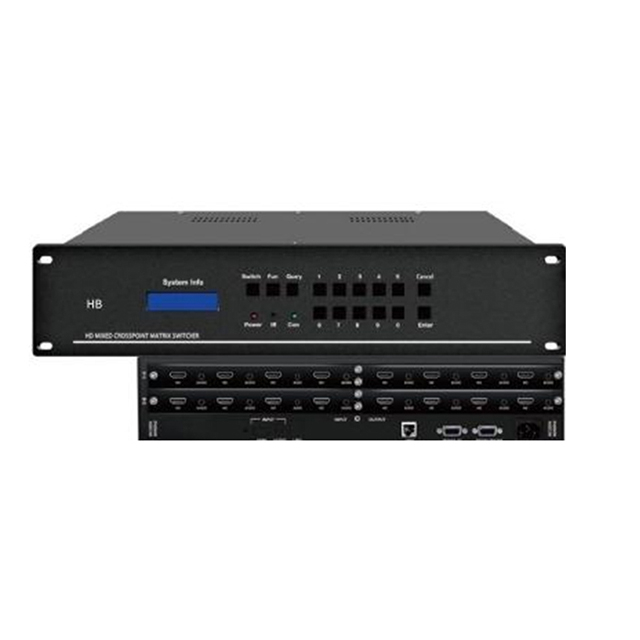

6. There are 15 hardware buttons and 3 working status indicator lights on the panel, which can be used to directly perform switching control operations.

7. (Optional) Supports dual power supply, with two power supplies installed internally that are truly redundant, not just dual plugs.

8. (With preview module) Support network preview, allowing viewing of video images of all input signals on both the app and computer software.

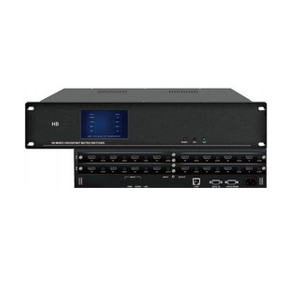

9. The LCD display shows the working status of the matrix (such as viewing the correspondence between output and input channels).

10. Supports subtitles, allowing direct modification of subtitle content through the network and serial port. Each input video can have independent and different subtitles, supporting both Chinese and English languages. Subtitles can be static or scrolling, with the background color adjustable, and can also be set to a transparent background. The font color and size can be adjusted.

11. It is compatible with splicing processors and supports large-screen splicing functions for ordinary TVs, LCD displays, DLP, and other devices.

12. Each output audio channel can be volume-controlled through third-party devices such as computers and central control systems, and the volume level can be indicated numerically on the display device.

13. Each output channel allows independent adjustment of brightness, contrast, saturation, and sharpness, as well as gain and compensation adjustments for color temperature.
