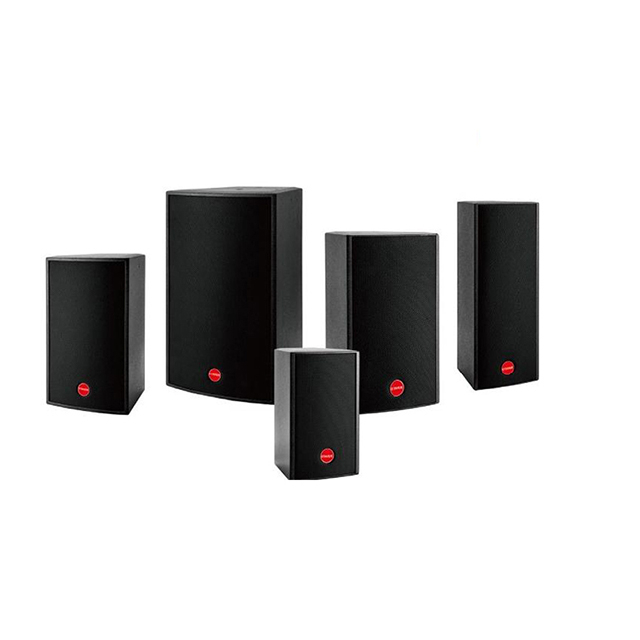

The conference series speakers utilize carefully selected high-grade ferrite drivers, featuring a flat frequency response, high sensitivity, and powerful output. Combined with a compact birch wood cabinet, they deliver smooth and clear sound quality. The cabinet design allows for multiple installation methods, and the adjustable hanging components provide multi-angle adjustments, meeting the needs of both main and auxiliary sound reinforcement in conferences. With its versatile design, it is suitable for high-demand language sound reinforcement.
Model parameters | HB-601 | HB-602 | HB-801 | HB-1001 | HB-1201 |
Low-frequency unit configuration | 1x6.5" | 2x6.5" | 1x8" | 1x10 | 1x12" |
High-frequency unit configuration | 1x1.33" | 1x1.33" | 1x1.33" | 1x1.33" | 1x1.73" |
speaker power | 110W(AES) 220W(PEAK) | 190W(AES) 380W(PEAK) | 150W(AES) 300W(PEAK) | 180W(AES) 360W(PEAK) | 340W(AES) 680W(PEAK) |
Coverage angle (Horizontal/Vertical) | 90°×90° | 90°×90° | 90°×60° | 90°×60° | 90°×60° |
frequency response | 80Hz-20KHz | 70Hz-20KHz | 69Hz-20KHz | 60Hz-20KHz | 55H-20KHz |
rated impedance | 8Ω | 4Ω | 8Ω | 8Ω | 8Ω |
sensitivity | 91dB | 93dB | 92dB | 94dB | 97dB |
sound pressure level | ≥109dB | ≥113dB | ≥111dB | ≥112dB | ≥120dB |
WxDX HR寸mm | 215×230x359 | 215×230x542 | 261x282x448 | 295x320x500 | 379x408x620 |
weight | 6.9kg | 11kg | 9.7kg | 13.2kg | 20.4kg |
