Multi-functional speaker

Model:
PDF Series
Brand:
hongboyatai

Availability:



Inquire Add to Basket

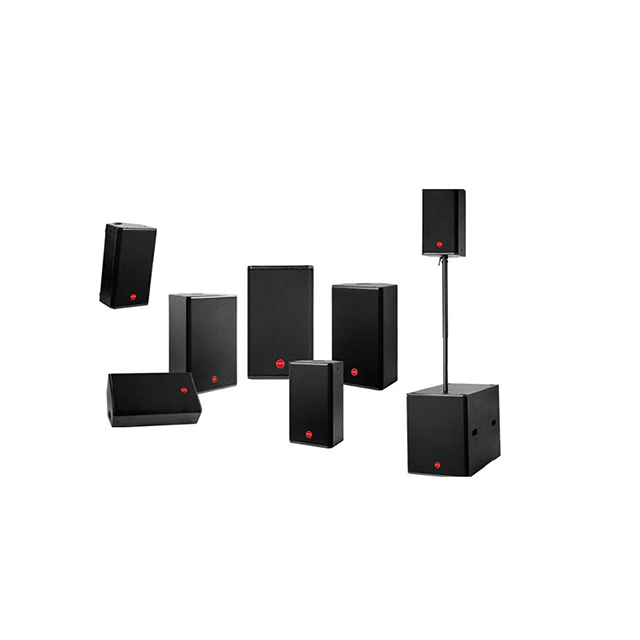

The PDF series speakers feature an optional imported paper cone woofer, powerful tweeter and woofer, combined with a multifunctional and compact cabinet design, delivering smooth, clear, rich, and sweet sound quality,The multi-angle cabinet design meets the multifunctional requirements of full-range main sound reinforcement/auxiliary sound reinforcement, stage monitoring (feedback), and is suitable for high-demand language sound reinforcement.

*Verify Code

Related Products

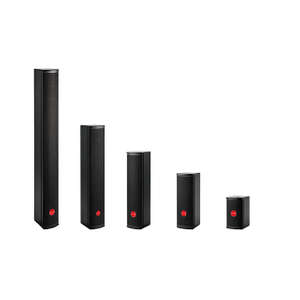

Column array loudspeaker

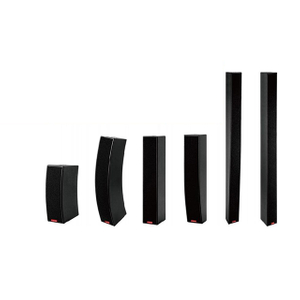

Curved array sound column

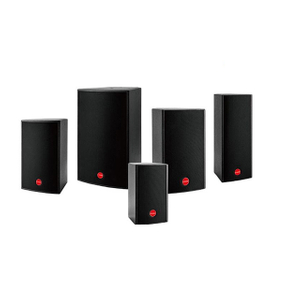

High-end conference speaker

Model parameters	HB-PDF-8	HB-PDF-10	HB-PDF-12II	HB-PDF-15II	HB-PDF-18BII
Low-frequency unit configuration	1x8"	1x10"	1×21"	1x15"	1x18"
High-frequency unit configuration	1x1"	1x1”	1x1"	1x1.4"	/
speaker power	200W(AES) 400W(PEAK)	250W(AES) 500W(PEAK)	400W(AES) 800W(PEAK)	400W(AES) 800W(PEAK)	800W(AES) 1600W(PEAK)
Coverage angle (Horizontal/Vertical)	90°×60°	90°×60°	90°×60°	90°×60°	90°×60°
frequency response	74H-20KHz	57HZ-20KHz	55HZ-20KHz	46Hz-20KHz	41Hz-250Hz
rated impedance	8Ω	8Ω	8Ω	8Ω	8Ω
sensitivity	96dB	97dB	98dB	100dB	98dB
sound pressure level	≥119dB	≥121dB	≥124dB	≥126dB	≥127dB
WxDX HR寸mm	250x247x415	300x282x498	360x318x598	430x416x670	500×800x606
weight	12kg	14.4kg	21kg	28kg	39kg
